Prime 56X Ultrasound Scanner

Prime 56X Ultrasound Scanner

Regular price $3,699.00 USD
Regular price Sale price $3,699.00 USD
Sale Sold out

Includes a Upgraded MicroConvex Probe!

**The Prime 56x**

The ultimate ultrasound machine for canines, felines, or other small animals. This portable ultrasound machine comes with a veterinary-grade probe included.

**The Prime 56x Ultrasound Machine**

By default, this portable ultrasound machine includes a convex probe. Established in 1997, the company has built a reputation for high-quality ultrasound equipment with impeccable reliability, service, and support. Few companies worldwide can compare, supported by discerningly chosen distributors.

When you purchase one of these machines, you have the reassurance of a dedicated team of professionals behind you. Buying from us means support from professional sonographers with over 25 years of combined scanning experience in the UK National Health Service (echocardiography, obstetrics, and gynecology), 15 years of veterinary scanning and teaching, as well as a team of service engineers and world-leading research and development staff. We are here to help and are always just a phone call or email away.

**More about the scanner:**

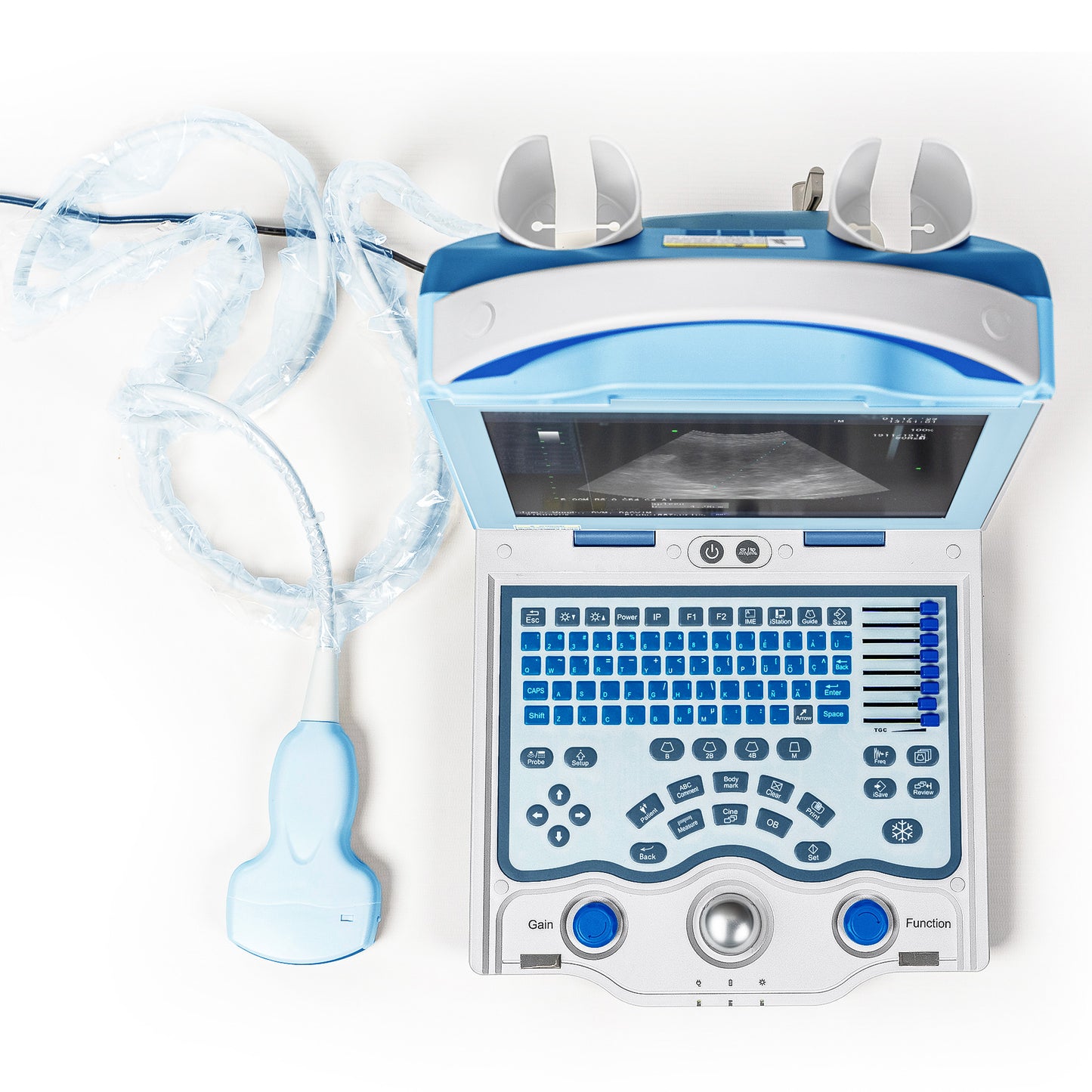

– High-resolution 64-channel multifrequency transducer, made with superior quality matching and backing layers for minimal beam width and maximum noise reduction, providing a high signal-to-noise ratio.

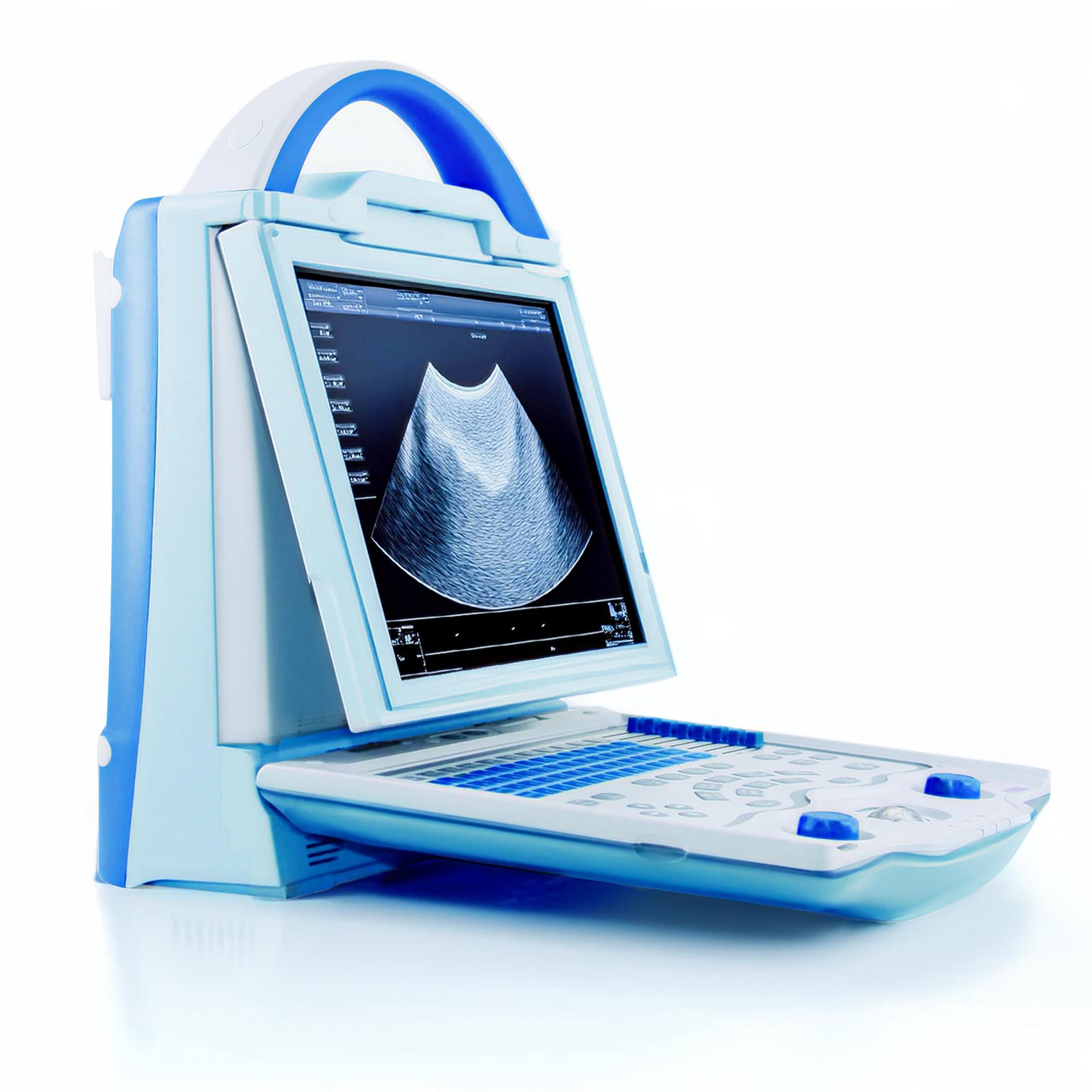

– 10.4″ high-resolution color LED backlit display for stunning high-contrast images, making diagnostic imaging easier than ever.

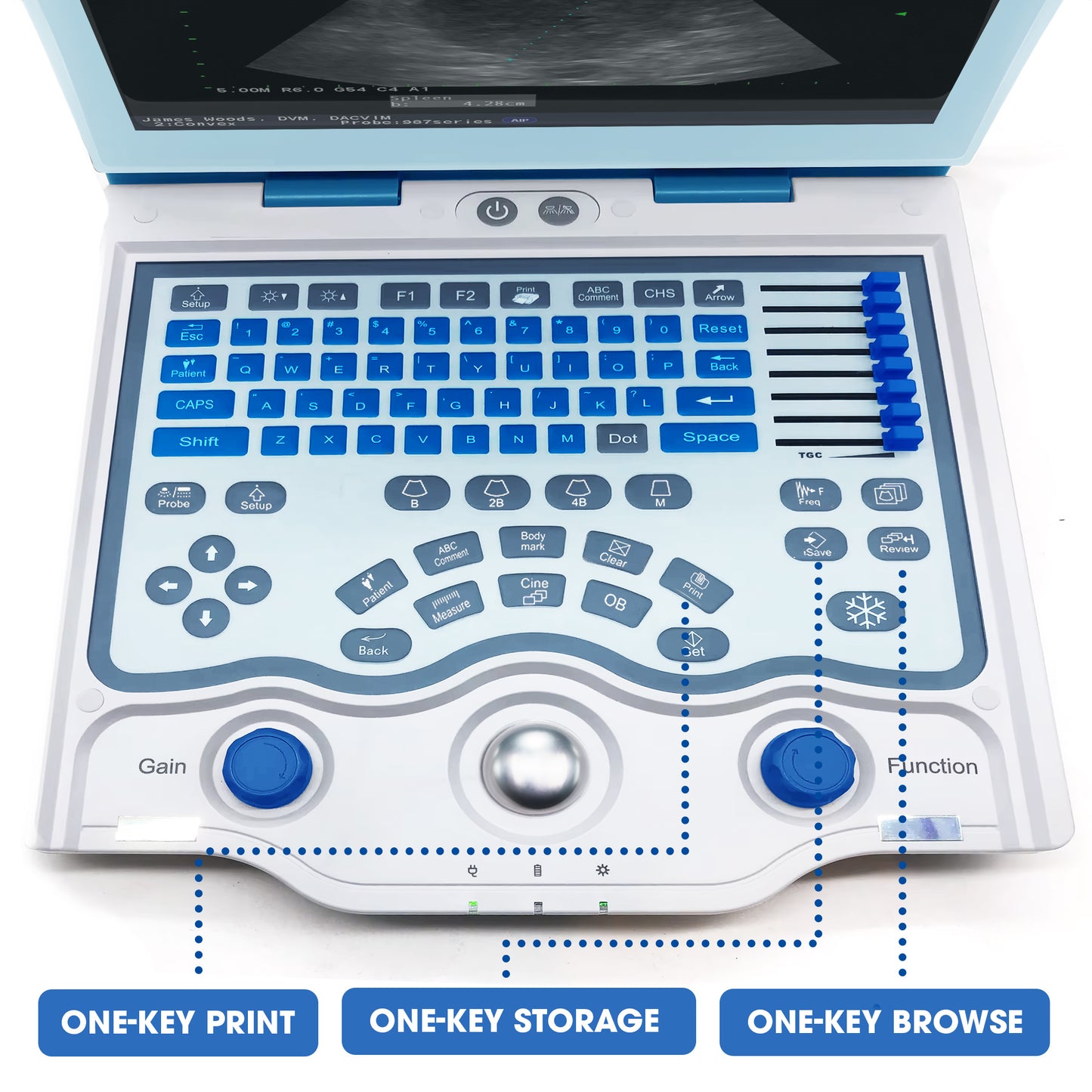

– Backlit keyboard for use in dark rooms.
– Adjustable screen brightness.
– Weight: 4.5kg
– Dimensions: 256x150x326mm

**Technical Specifications:**
– Adjustable depth up to 236mm (dependent on transducer choice), important for imaging structures at various depths.
– Gain: 0-127dB.
– Contrast: 27-90dB.
– Grey Scale: 256. A wide range of grey scale and contrast settings allows for high-contrast or detailed grey images, depending on the application. For abdominal scanning, a wide range of greys helps discern subtle texture differences, while high contrast is beneficial for early pregnancy detection or echocardiography.
– 8 TGC levels for optimized gain settings, useful for scanning fluid-filled structures.
– Frame rate: 30fps to avoid lag, crucial for imaging moving subjects like fetuses and the heart.

– 8 pseudo color options to enhance detail visibility, useful in early pregnancy detection or basic heart scanning.
– 256-frame Cine loop with a roller ball for scrolling back through clips after freezing the image.
– Image storage: Extra large 4GB hard disk for permanent storage of approximately 5000 images.
– Needle guide function with adjustable on-screen guide lines, perfect for biopsies.
– Measurement package includes standard measurements like distance, area, volume, and perimeter.
– Calculation packages for basic cardiac (suitable for screening), gynecology, obstetrics (gestational age estimation, amniotic fluid measurement, crown-rump length), and urology (residual urine volume, prostate volume).
